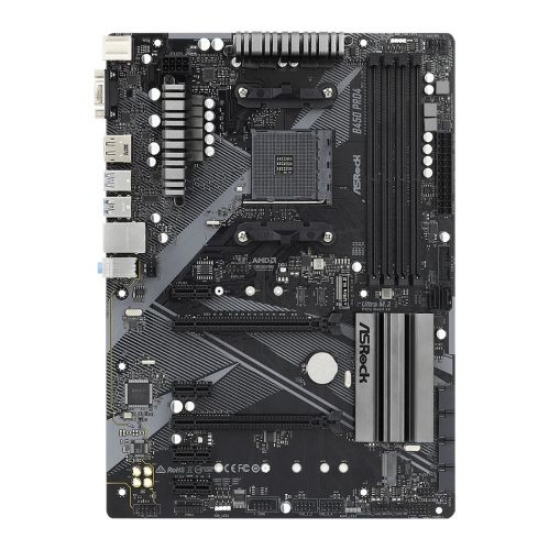

Asrock B450 PRO4 R2.0, AMD B450, AM4, ATX, 4 DDR4, XFire, VGA, HDMI, DP, 2x M.2

Asrock B450 PRO4 R2.0, AMD B450, AM4, ATX, 4 DDR4, XFire, VGA, HDMI, DP, 2x M.2
Manufacturer: ASRock
  • Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
  • Supports DDR4 3200+ (OC)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, Display Port, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN




10 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.





Dual M.2 For SSD

One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.





Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.





2oz Copper

It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.





AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.





Super Alloy Motherboard

Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.




3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.





Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
*Supported with processors with integrated graphics only.





Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.





Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.





A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop
This product is sold out
