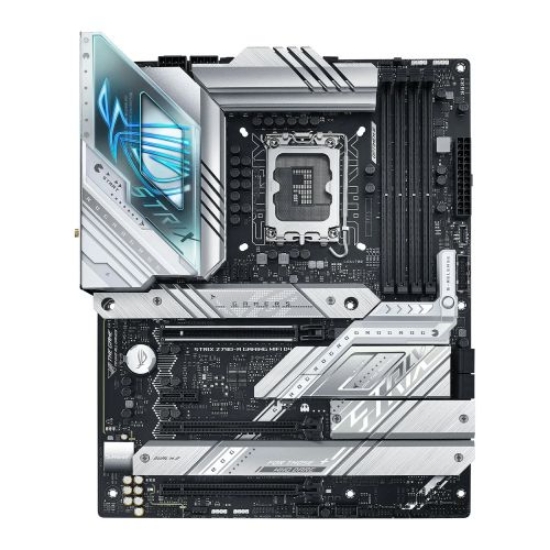

Asus ROG STRIX Z790-A GAMING WIFI D4, Intel Z790, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Asus ROG STRIX Z790-A GAMING WIFI D4, Intel Z790, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
Manufacturer: Asus




Well-versed in style, performance, cooling, and connectivity, the ROG Strix Z790-A exudes well-rounded balance inside and out.


A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel® 13th Gen Core processors. PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.


  • 18 + 1 Power Stages - Robust Power Stages
  • AI Overclocking - Effortless performance boost
  • AI Cooling II - One-click fan tuning
  • PCIe 5.0 - x1 PCIe 5.0 x16 slot
  • USB 3.2 Gen 2x2 - x1 I/O port, and x1 connector for PD 3.0 at 30W
  • DIY Friendly
  • WiFi 6E





PCIe® Slot Q-Release

A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.





M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.





Clear CMOS

The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.





BIOS Flashback™

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.





Q-LED

Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.





AI Overclocking

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.




PCIe 5.0

The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.





Power Design

Power Architecture
16 + 1 power stages rated to 70A each deliver ample current in order to drive 13th and 12th Gen Intel® Core™ Processors through any workload with ease.

Alloy Chokes And Durable Capacitors
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

Dual Procool II Power Connectors
ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.

Six-Layer PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.





OptiMem III

With proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies.





Cooling

VRM Heatsinks
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.

M.2 Backplate
An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.

M.2 Heatsinks
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

CPU Fan Headers
A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.

AIO Pump Fan Header
A dedicated PWM/DC header connects self-contained water-cooling setups.

4-pin Fan Headers
Each header supports auto-detection of PWM or DC fans.





WiFi 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.





2.5G Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.





USB 3.2 Gen 2x2

The Strix Z790-A comes loaded with two USB 3.2 Gen 2x2 Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.





SupremeFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.





Undeniably ROG STRIX

The ROG Strix Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board's high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.





Outshine The Competition

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.





Cooler Compatibility

The ROG Strix Z790-A bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.





The ROG STRIX Ecosystem Awaits

Level up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.





Software Utilities

A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
  • Intelligent control
  • Optimization
  • Gaming audio
  • AIDA64 Extreme
  • Armoury Crate

This product is sold out
