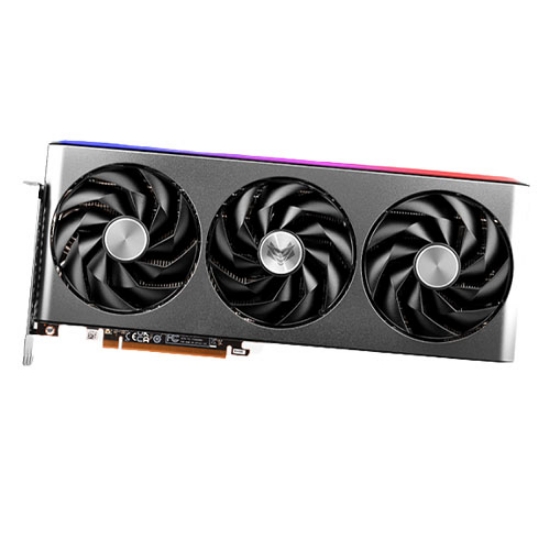

Sapphire NITRO+ RX7800 XT GAMING, PCIe4, 16GB DDR6, 2 HDMI, 2 DP, 2565MHz Clock, RGB

Sapphire NITRO+ RX7800 XT GAMING, PCIe4, 16GB DDR6, 2 HDMI, 2 DP, 2565MHz Clock, RGB
Manufacturer: SAPPHIRE



At the core of Sapphire Nitro+ Graphics cards are the technologies of the Nitro+ House of Pantheon. Pantheon guarentees supreme cooling technology and many distinct features with each Nitro+ iconic feature standing as strong as the pillars of the Pantheon.


  • Boost Clock: Up to 2565 MHz
  • Game Clock: Up to 2254 MHz
  • Memory: 16GB/256 bit DDR6. 19.5 Gbps Effective
  • Stream Processors: 3840
  • RDNA™ 3 Architecture
  • Ray Accelerator: 60






SAPPHIRE NITRO+ Graphics Cards


Backplate
Provides rigidity and helps cool your card by increasing heat dissipation.

ARGB
Personalize the look of your NITRO + card with its built-in ARGB.

Outputs
Choose from HDMI and DP slots for a maximum of 4 outputs

Cooling
Innovative cooling technologies to ensure optimal performance and airflow.






WAVE Fin Design & V-Shape Fin Design for GPU cooling

The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.






Cold Rolled Steel Frame

Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon RX 7800 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.






Digital Power Design

SAPPHIRE NITRO+ AMD Radeon RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency






High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.






Tough Metal Backplate

The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.






Dedicated VRM Cooling

Dedicated VRM cooling module to create optimal heat dissipation for peak airflow and cooling performance.






Angular Velocity Fan Blade

The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.






Ultra High Performance Conductive Polymer Aluminum Capacitor

The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7800 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.






Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.






Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.






Assistive System Fan Control

When the temperature of the GPU increases, the graphics card fans speed up accordingly. To further help with cooling and heat dissipation, the Assistive System Fan Control feature in SAPPHIRE's TriXX software controls the speed of a system fan to automatically increase at the same time as the graphics card fans, this assists in expelling the heated air from the entire system faster.






Dual BIOS

Choose between Primary BIOS mode or Secondary mode to enhance your gaming experience.






Graphics Card Supporter

Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.






ARGB Light Bar

With tasteful shroud design augmented by ARGB LEDs, you can change the colors of the LED, for a customized design. This can be controlled via TriXX software. Choose from different modes including Fan Speed Mode, PCB Temperature Mode or the colourful rainbow mode or turn off the LEDs.






External ARGB Control Sync

Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control.






Fan Quick Connect

If there's a fan problem, you don't have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they're easy to remove, clean and replace, with just one screw holding them securely in place.






Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.






Tri-X  Cooling Technology
  • An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections
  • Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system
  • Heat is dissipated by a trio of large efficient fans running anticlockwise to maximize airflow.



This product is sold out
