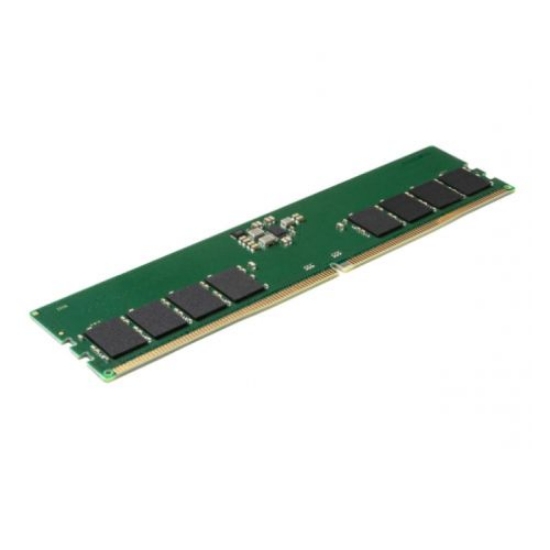

Kingston, 16GB, DDR5, 4800MHz (PC5-38400), CL40, 1.1V, ECC, DIMM Memory

Kingston, 16GB, DDR5, 4800MHz (PC5-38400), CL40, 1.1V, ECC, DIMM Memory
Manufacturer: Kingston


16GB 1Rx8 2G x 64-Bit PC5-4800 CL40 288-Pin DIMM


ValueRAM's KVR48U40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.


  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free



This product is sold out
